The UVB -1 productivity of 1 m3 per hour
UVB-1 bitumen unit is designed for production both anionic and cationic bitumen emulsions, which are used in road construction as follows:
- base coat on old road top before application of asphalt-concrete;
- preparation of cold asphalt concrete mixes;
- surface treatment of road top;
- thin film protective coats;
- patch repair of roads etc.
The unit is designed for operation at asphalt concrete production facilities. It can be operated either outdoors under canopy or indoors.
UVB-1 bitumen unit is semi-automatic, consists of several individual assemblies on a single frame and interconnected by pipelines.
An external source of 6 – 8 bar compressed air is required for operation of pneumatic systems of the unit.
Specifications
|
Parameter |
Value |
| 1 Max production capacity (including preparation time), m3/hour | 1 |
| 2 Bitumen consumption (90…130 penetration), minimum, m3/hour | 0,97 |
| 3 Water consumption, m3/hour | 0,6…0,7* |
| 4 Flux consumption (if bitumen penetration below 90), dm3/hour | 0…50* |
| 5 Acid consumption, dm3/hour | 1…20* |
| 6 Emulsifier consumption, dm3/hour | 1…20* |
| 7 Adhesion additive consumption, dm3/hour | 1…20* |
| 8 Max bitumen input pressure, MPa | 0,2 |
| 9 Bitumen to mixer pressure, MPa | 14…16 |
| 10 Water phase to mixer pressure, MPa | 0,2 |
| 11 Bitumen input temperature, 0С | 140-160 |
| 12 Water input temperature, 0С | 40-60 |
| 13 Emulsion head after unit, meters, max | 15 |
| 14 Max nominal power, kW | 17 |
| 15 Power voltage at 50 Hz AC, V | 380 |
| 16 Compressed air pressure, bar | 4…6 |
| 17 Air consumption, dm3/minute | 100 |
| 18 Dimensions, mm: | |
| -length | 2250 |
| -width | 1750 |
| -height | 1840 |
| 19 Weight, kg | 1050 |
* Depends on production recipe!

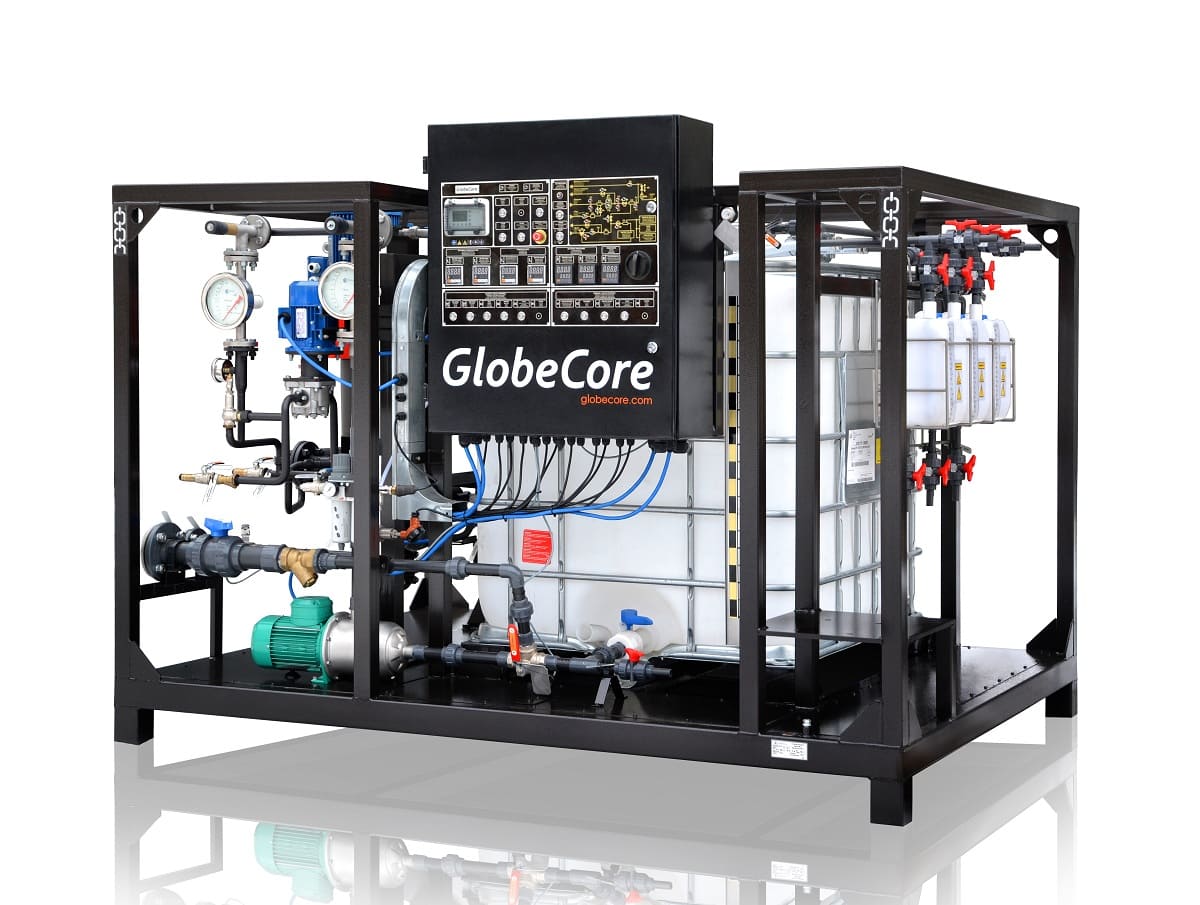

UVB-1 general view (electric control cabinet side)
UVB-1 general view (pump assembly side)
|
Pos |
Item |
Pos. |
Item |
|
1 |
Frame |
Regulation valves |
|
|
2 |
Blend tank |
||
|
3 |
Pump assembly |
14.2 |
Blend |
|
4 |
Mill |
14.3 |
Flux |
|
5 |
Water pump |
Flow meter |
|
|
7 |
Flux pump |
15.2 |
Blend |
|
8 |
Hydrodynamic mixer |
15.3 |
Flux |
|
16 |
Bitumen pneumatic double valve |
||
|
10 |
Water phase mixer |
17 |
Heated bitumen pipelines |
|
18 |
Heating oil pipelines |
||
|
12 |
Control panel |
||
|
Measuring vessel assembly |
|||
|
13.1 |
Acid |
||
|
13.2 |
Emulsifier |
||
|
13.3 |
Adhesion additive |
Frame pos 1 supports the following:
- blend tank pos.2;
- bitumen pump assembly pos.3;
- mill pos.4;
- water pump pos.5;
- flux pump pos.7;
- hydrodynamic mixer pos.8;
- water phase mixer pos.10 ;
- control panel pos.12;
- measuring vessel assembly: pos. 13.1 – acid; pos. 13.2 – emulsifier; pos. 13.3 – adhesion additive;
- regulation valves: pos.14.2 – blend; pos.14.3 – flux;
- flow meters: pos.15.2 – blend; pos.15.3 – flux;
- pneumatic bitumen valve pos.16;
- heated bitumen pipeline system, pos.17;
- heating oil pipeline system pos.18;
The unit if also equipped with temperature and pressure sensors. Pressure and temperature are measured in the following points:
- water/blend supply;
- bitumen supply;
- bitumen to mixer supply;
- emulsion output.
Pressure is measured in the following points:
- before the unit;
- after bitumen pump;
- before the mill.
The unit is equipped with an emulsifier tank heater:
The heater is a welded flat platform. A 200 liter emulsifier barrel is placed on the platform. A heating agent circulates through pipes in the platform.
The control panel is an air-tight metal case containing «Schneider zelio» controller, multifunction measuring regulators TC4 and TK4, protection and start equipment.
Control panel
|
No |
Item |
Note |
No |
Item |
Note |
|
1 |
Diagram |
15 |
“Flux” kerosene operation mode switch (for automatic mode) |
SA2 |
|
|
2 |
“Bitumen forward” H2 pump double control button |
SB2 |
16 |
Automatic mode “Stop” button |
SB10 |
|
3 |
K1 valve “Bitumen” control switch |
SA6 |
17 |
Lights check button |
SB8 |
|
4 |
“Bitumen reverse” H2 pump double control button |
SB3 |
18 |
Emergency stop button |
SB1 |
|
5 |
Mill M control button |
SB7 |
19 |
Manual phase breaker |
SD1 |
|
6 |
K2 “Solution” valve control switch |
SA3 |
20 |
Emulsion pressure indication before the mill “P3 pressure” |
A7 |
|
7 |
Bitumen return direction switch |
||||
|
8 |
H1 “Solution” pump control double button |
SB5 |
22 |
Emulsion temperature indication before the mill “T3 temperature” |
A3 |
|
9 |
K4 “Flux” valve control switch |
SA5 |
23 |
Water/blend temperature indication “T4 water phase temperature” |
A4 |
|
10 |
H3 “Flux” pump control double button |
SB6 |
24 |
Bitumen pressure indication before the pump “P1 pressure” |
A6 |
|
11 |
H4 “Solution II” pump control double button |
option |
25 |
Bitumen pressure indication after pump “P2 pressure” |
A8 |
|
12 |
Automatic mode “Start” button |
SB9 |
26 |
Bitumen temperature indication before pump “T1 temperature” |
A1 |
|
13 |
Mode selector |
SA1 |
27 |
Bitumen temperature indication after pump “T2 temperature” |
A2 |
|
28 |
Controller |
A11 |
Typical placement plant for a bitumen emulsion production facility
| No | ITEM | AMOUNT |
| 1. | Emulsion preparation unit | 1 |
| 2. | Acid storage tank | 1 |
| 3. | Bitumen boiler | 1 |
| 4. | Bitumen pump assembly | 1 |
| 5. | Water storage tank | 1 |
| 6. | Water pump assembly | 1 |
| 7. | Flux storage tank | 1 |
| 8. | Emulsion storage tank | 1 |
| 9. | Emulsion pump assembly | 1 |
| 11. | Additive tank | 1 |
| 12. | Emulsifier tank | 1 |
| 13. | Oil heating station | 1 |
| 14. | Compressor | 1 |
| 15. | Bitumen filter | 1 |
